Product Details:
Payment & Shipping Terms:
|
| Angle Processing Size(mm): | L63x6~L250x32 | Feeding Speed (mm/min): | 100~500 |
|---|---|---|---|
| Processing Length (mm): | Min.350 | Quantity Of Axis: | 2 |
| Quantity Of Feeding Motor: | 2 | Rotation Of Spindle(r/min): | 288 |
| Blade Size (mm): | 16*16/R20、R40 | Blade Quantity: | 16/16 |
| Pressure Of Cylinder(kN): | 60 | Fuel Tank Capacity (L): | 130 |
| Total Power(kW): | 9.5 | ||
| Highlight: | 3000w cnc gas cutting machine,carbon cnc gas cutting machine,1530 cnc tube cutter |
||

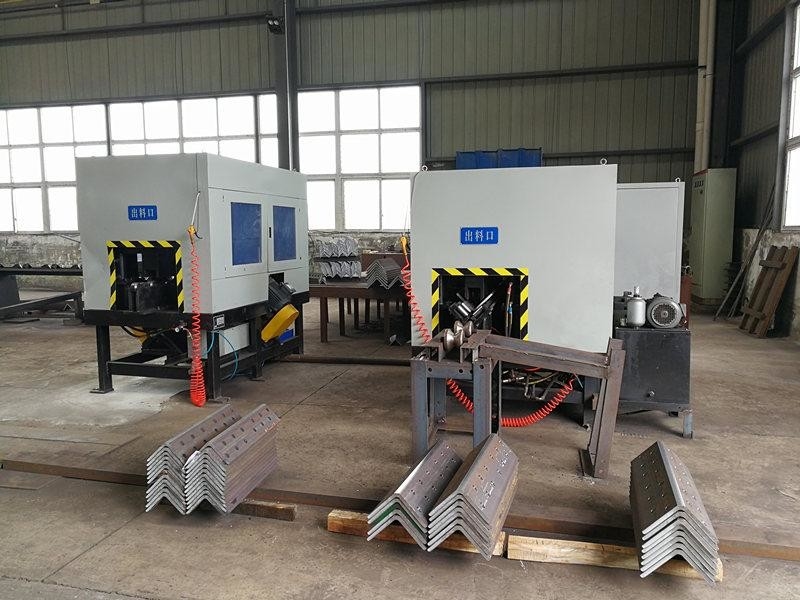

Angle Back Milling Machine Model QC250-2C
Application Industry:

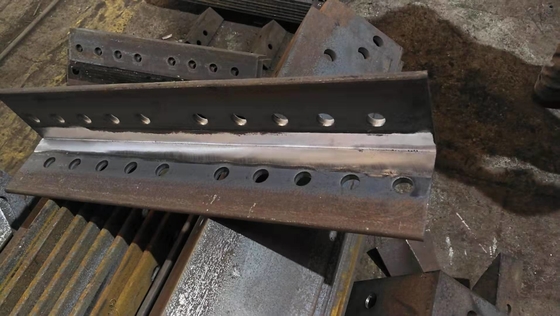

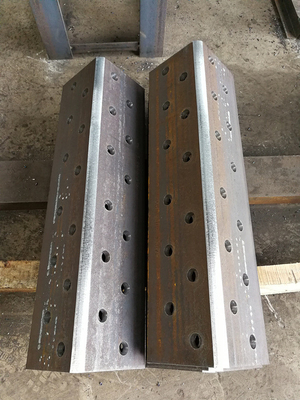

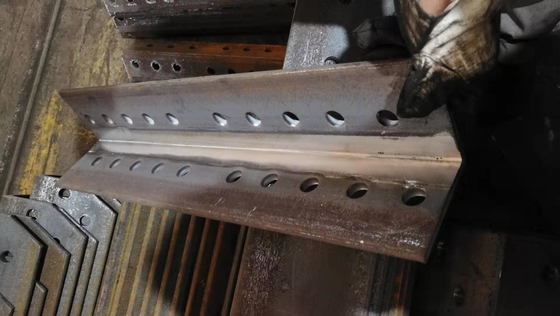

The machine used for angle back milling, mainly in the field of angle steel tower industry, electric power fittings, and steel structure construction industry etc.
Product Feature:
1.Automatic continuous feeding, unlimited length, improve production efficiency and reduce production costs.
2. It adopts PLC control, timely feedback of operation information and status, and is easy to operate.
3. The NC program adjustment ensures the machining accuracy of the workpiece.

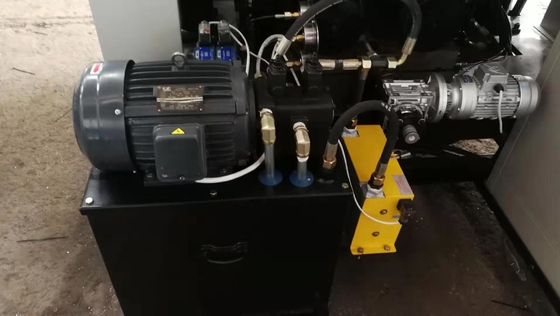

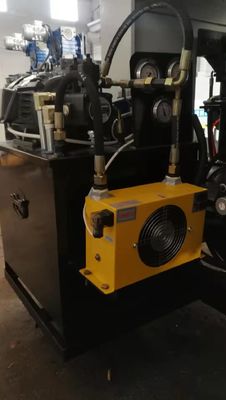

4. Hydraulic clamping of the material, smooth operation, to ensure the processing accuracy of the workpiece.
5. It is simple and convenient to operate, safe and reliable in performance with high production efficiency.
Technical Parameter
| Model | QC250-2C |
| Angle processing size(mm) | L63x6~L250x32 |
| Feeding speed (mm/min) | 100~500 |
| Processing length (mm) | Min.350 |
| Quantity of axis | 2 |
| Quantity of feeding motor | 2 |
| Rotation of spindle(r/min) | 288 |
| Blade size (mm) | 16*16/R20,R40 |
| Blade quantity | 16/16 |
| Pressure of cylinder(kN) | 60 |
| Fuel tank capacity (L) | 130 |
| Total power(kW) | 9.5 |
| Weight(ton) | About 3.5 |
| Overall size(m) | About 2.2x2x1.8 |
