Product Details:
Payment & Shipping Terms:
|
| Processing Angle Steel Size Range (mm): | L63×63×4~L360×360×40 | Power Requirements: | 3-phase 4-wire 380V, 50 Hz |
|---|---|---|---|
| Total Power Of Equipment(kw): | 12 | Air Source Requirements: | 0.6~0.8MPa |
| Single Spindle Power(kw): | 5.5 | Cutting Speed（min-1）: | 360 |
| Cutter Head Diameter(mm): | 120 | Feed Rate(mm): | 0-450 |
| Number Of Spindles: | 2 | Number Of Feeding Motors: | 2 |
| Number Of Pressing Cylinders: | 4 | Nominal Pressure: | 1600 |
| Highlight: | cnc plasma flame cutting machine,gantry cnc cutting machine |
||

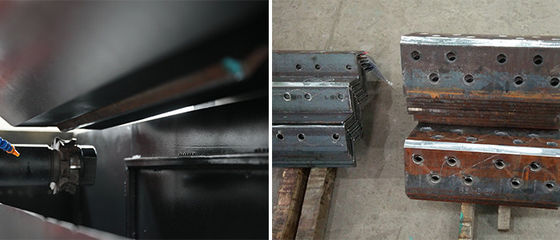

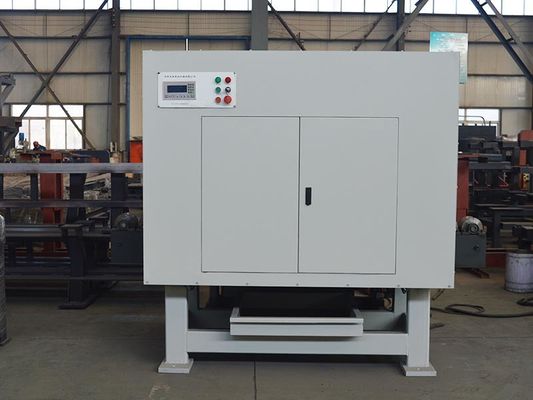

CB36 CNC angle steel shovel back machine
Adopting the principle of milling, the processing speed is fast, high efficiency, and the surface flatness of the workpiece processing is good.
The operation of the equipment is simple, which reduces the operation requirements for workers;
The high degree of automation of the machinery can realize continuoussingle-segment feeding, which effectively improves the working efficiency;
Compared with the traditional planer processing process, the machine overcomes the processing length is limited, clamping cumbersome problems, processing length free and unrestricted, the workpiece does not need to clamp the device to make the processing more convenient, fast, reduce the labour intensity of workers, greatly improving production efficiency;
The equipment is easy to operate, flexible in adjustment and stable in operation.
Parameter:
| Machine model | CB36 |
| Processing angle steel size range (mm) | L63×63×4~L360×360×40 |
| Power requirements | 3-phase 4-wire 380V, 50 Hz |
| Total power of equipment(kw) | 12 |
| Air source requirements | 0.6~0.8MPa |
| Single spindle power(kw) | 5.5 |
| Cutting speed(min-1) | 360 |
| Cutter head diameter(mm) | 120 |
| Feed rate(mm) | 0~450 |
| Number of spindles | 2 |
| Number of feeding motors | 2 |
| Number of pressing cylinders | 4 |
| nominal pressure | 1600 |
