Product Details:
Payment & Shipping Terms:
|
| Range Of Double-sided Bending Angle Steel (mm): | L80×80×6~L200×200×20 | Outside Angle Steel Bending Range: | L63×63×5~L160×160×14 |
|---|---|---|---|
| Inner Angle Bending Range: | L50×50×4~L100×100×10 | Maximum Angle Range Of Double Sided Bending Angle Steel(°): | 50 |
| Maximum Flattening Angle Range (to Be Selected): | L50×50×4~L100×100×10 | Maximum Outside Bending Angle Range: | 140 |
| Max. Inner Bending Angle Range(°): | 40 | Maximum Bending Width Of Steel Plate(mm): | 600 |
| Maximum Bending Angle Of Steel Plate(°): | 150 | Number Of NC Axes: | 4 |
| Stepper Motor(n.m): | 1.5 | Motor Power Of Hydraulic Power Station(kw): | 15 |
| Highlight: | cnc plasma flame cutting machine,gantry cnc cutting machine |
||

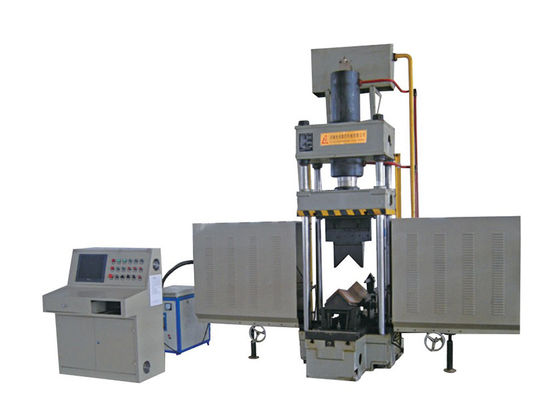

APB2060 Hydraulic CNC Angle and Plate Fire Bending Machine
Product use
This machine can be used for single and double-sided fire bending, flattening and connecting plate bending of angle steel.
Advantages
Rigid equipment, compact structure
Energy saving, heating with less electricity, part of the workpiece can be completed by cold pressing, only 1/5 of the original energy.
Simple operation only need to key in the workpiece specifications, bending angle can be.
Heater in, out, pressure bending are automatic, high production efficiency, increase more than 8 times.
Reduce the labour intensity of workers, to ensure stable precision of the workpiece.
Hydraulic stability of steel from damage.
Mechanical, electrical and hydraulic integration.
Product features
PLC control, servo motor feed
Electrical components and hydraulic components are imported products.
Easy programming, automatic and manual are available.
Cold pressing and hot pressing are available, in line with the tower processing technology.
Parameter:
| Machine model | APB2060 |
| Range of double-sided bending angle steel (mm) | L80×80×6~L200×200×20 |
| Outside angle steel bending range | L63×63×5~L160×160×14 |
| Inner angle bending range | L50×50×4~L100×100×10 |
| Maximum angle range of double sided bending angle steel(°) | 50 |
| Maximum flattening angle range (to be selected) | L50×50×4~L100×100×10 |
| Maximum outside bending angle range | 140 |
| Max. inner bending angle range(°) | 40 |
| Maximum bending width of steel plate(mm) | 600 |
| Maximum bending angle of steel plate(°) | 150 |
| Number of NC axes | 4 |
| Stepper motor(n.m) | 1.5 |
| Motor power of hydraulic power station(kw) | 15 |
