Product Details:
Payment & Shipping Terms:
|
| Marking Force(kN): | 1000 | No. Of Character Group (piece): | 1 |
|---|---|---|---|
| No. Of Character In Each Side(piece): | 12 | Character Side (mm): | 14×10×19 |
| Working Stroke(mm): | 20-45 | Times Of Stroke(min-1): | 20-25 |
| Power Of Motor(kW): | 15 | Fuel Tank Capacity (L): | 350 |
| Highlight: | cnc plasma flame cutter,gantry cnc cutting machine |
||

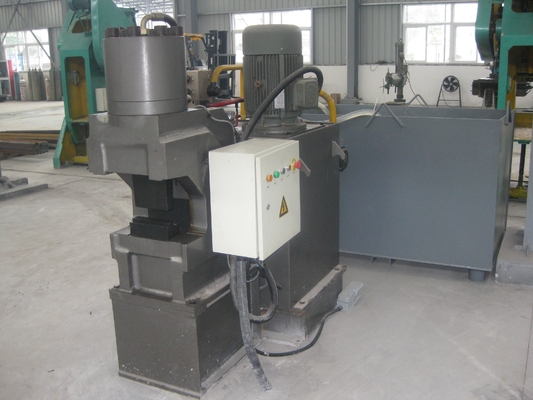

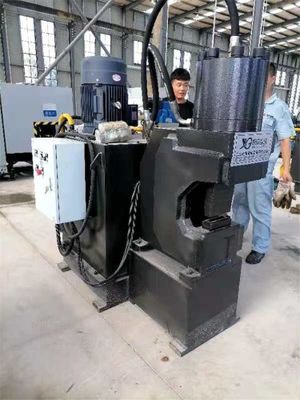

DZ Series Hydraulic Marking Machine for angle steel and metal plates in the field of power and telecommunication
Applicable industry:

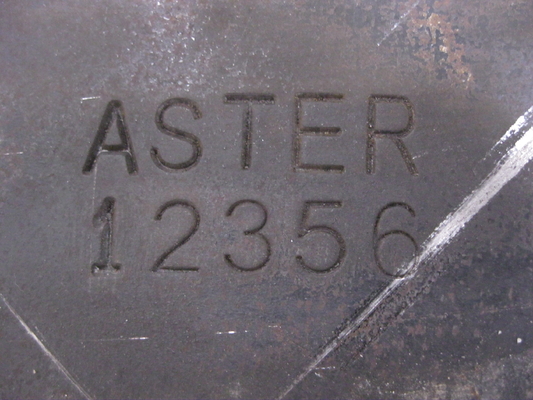

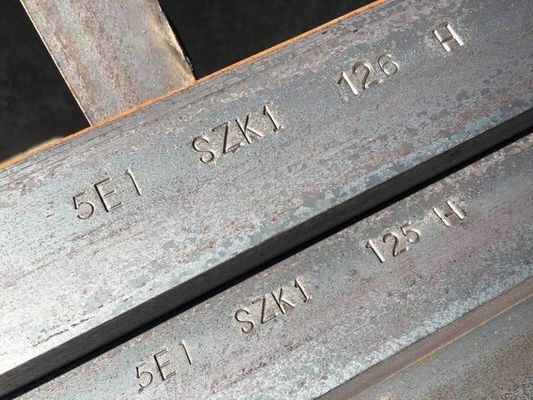

Used for marking of angles and metal plates in the field of power and telecommunication.
Product Feature:
1. It has an independent hydraulic power mechanism and electrical control system.
2. Using high-speed hydraulic typing system, stable performance and faster typing speed.
3. The main machine is welded by steel plates, in C shape, to provide support for the mold.
4. Time relay, intermediate relay and mechanical travel switch are used to control the electromagnetic reversing valve.
5. The equipment is simple and convenient to operate, safe and reliable in performance, and high in production efficiency.
Parameter:
| Model | DZ100 |
| Marking force(kN) | 1000 |
| No. of character group (piece) | 1 |
| No. of character in each side(piece) | 12 |
| Character side (mm) | 14×10×19 |
| Working stroke(mm) | 20-45 |
| Times of stroke(min-1) | 20-25 |
| Power of motor(kW) | 15 |
| Fuel tank capacity (L) | 350 |
| Weight (ton) | About 2.5 |
| Overall size(mm) | 1360x1000x1640 |
